full color rgb 8806 addressable led strip
Product Description
Our LPD8806 led strip adopt 8channels LPD8806IC,it is 4 way output, include a data cable, a clock cable and 2 power cable, 256 gray levels, it can be make RGB/White/RGBW. The effectS can be achieved by controller. such as letters,numbers, pictures, animations, and so on. Our LPD8806 LED Strip also can be 32/48/52/60leds per meter available both for rgb and rgb+w led strip.
Work voltage | DC5V |
LEDs | 52pcs |
IC /M | 26pcs |
Power / M | 15w |
Grey Grade | 256 |
Image Pixel | 52 |
Size | 5000*14*2.5mm |
PCB color | black/white |
LED Viewing angle | 120 degree |
Standard length | 5meters/roll |
Waterproof | IP20/IP65/IP67/IP68 |
Features:
* Superbright 5050 SMD top LED, high intensity and reliability.
* Long life span 50,000+ hours.
* High quality with CE and RoHs certificates.
* Cuttable along the cutting marks, according to pratical requirement.
* Flexible ribbon for curving around bends.
* Low power consumption and high luminous efficiency, no UV light.
* Use real Episatr to be the light source, which made color and brightness much better.
* Environmental protection: no Mercury or Lead harmful metals, no ultraviolet rays, no harmful to health.

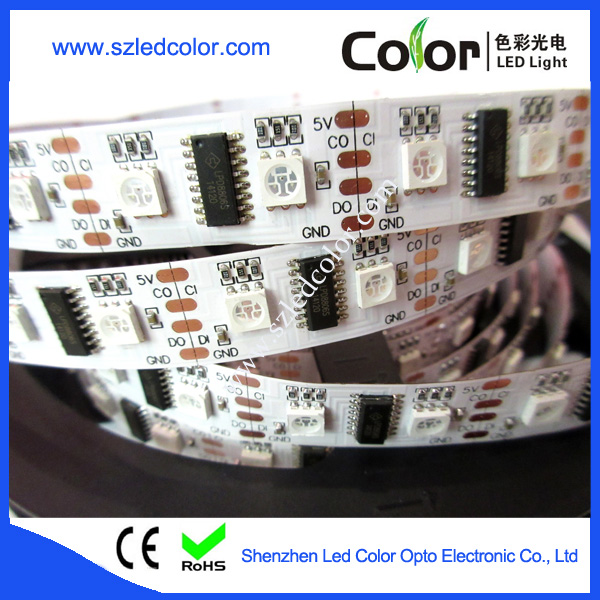

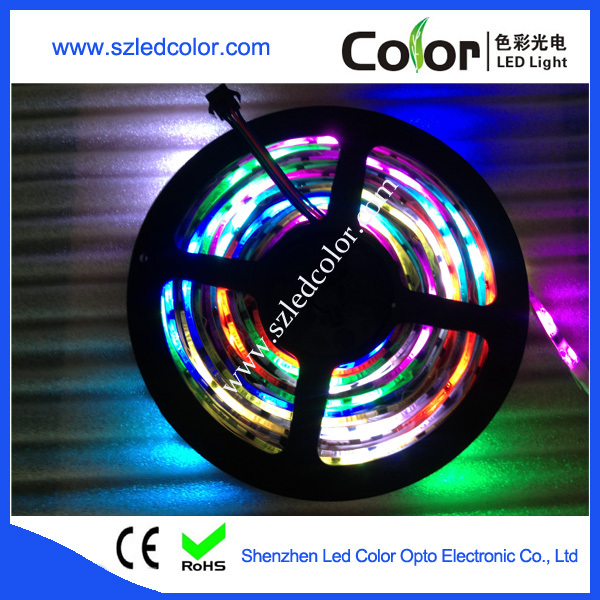

Show pictures:
Packaging and shipping:
* 5m per roll, one roll in one anti-static foil bag
* Payment: T/T ,Western Union or Paypal are welcomed
* Production lead time for5000pcs:5-7days
* Sample can be delivered in 3days
* Shipping freight are quoted under your requests
