lpd8806 hemispheric led pixel module

Ask Lasest Price
Brand Name :	LC
Certification :	CE,RoHS
Model Number :	LC-F2RGB8806
Price :	0.5-0.55usd/pcs
Delivery Time :	3days
Payment Terms :	Paypal,TT,Western Union
Supply Ability :	15000pcs/week

Add to Cart

Product Details
Company Profile

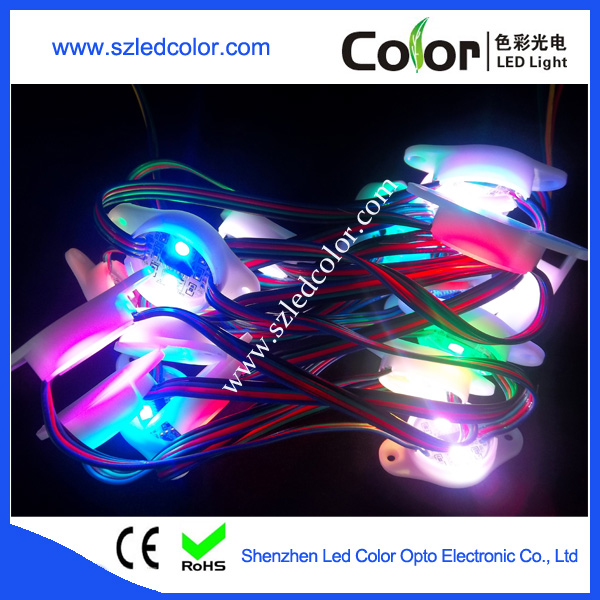

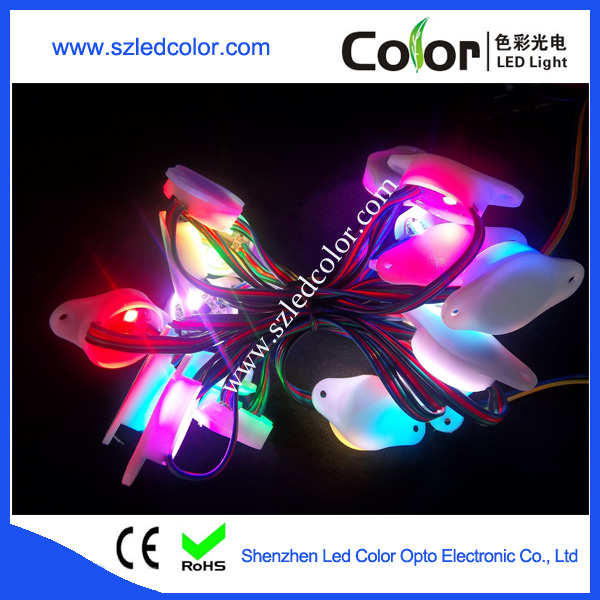

lpd8806 hemispheric led pixel module

lpd8806 hemispheric led module

Specifications

This is kind of pixel module is make of LPD8806 IC ,2 pcs high brightness 5050 smd leds with epistar chip as lighting source,use the hemispheric fashionable shape,It is good choice to use as holiday decoration or art lighting,also the IP67 waterproof make it can work outdoor without other protection.

Description:

Ø Superbright SMD top LED & viewing angle, high brightness output, no spot and shadow.

Ø Colors can be chosen as Full color

Ø Low power consumption & operating voltage, safe and energy-saving.

Ø With IP67 protection rating,it can be outdoor use

Ø Solid-state, high shock or vibration resistant, long lifetime, more than 50000 hours.

Ø Easy installation with mounting holes and 3M adhesive tape on the back.

Features:

IC RGB module with W2801,ws2811 ipd8806

individually Control
Programable & SD controller
DMX 512 Controllalbe
Madrix compatible
IP67, Water-proof protection
Easy installation (two options: screw fixed, or 3M double side adhesive tape)

Parameter

IC chip	LPD8806
Power Consumption	0.72W/1.44W
Work Voltage	DC 5V/12V
Beam Angle	≥120
LED Quantity	2PCS or 4pcs SMD 5050
Color	Full color (RGB)
Waterproof Grade	IP67
Work Temperature	-20-50°C
Life-span	50,000H
Certification	CE&RoHS
Warranty	2 years

Also it can be 4leds per pcs with higher brightness,

Even can be different shape:

Application:

Widely used for home decoration use, hotels, clubs, shopping malls

Architectural decorative lighting,holiday lighing, boutique atmosphere lighting

Extensively applied in Backlighting, concealed lighting, channel letter lighting

Emergency & security lighting, advertisement sign lighting

Decorative lights for holiday, event, show exhibition

Applicable for automobile and bicycle decoration, border or contour lightin

Trade Terms:

Payment: T/T ,Western Union or Paypal are welcomed

Production lead time for5000pcs:5-7days

Sample can be delivered in 3days

Shipping freight are quoted under your requests

Shipping port: Shenzhen, Mainland China

Discounts are offered based on order quantities
