5050 RGBW 4 IN 1 LED SMD

RGBW LED provides the leading Chip on Top SMD type of LED

technology for high efficiency solid-state lighting solutions. It

offers excellent uniformity, flexibility and cost efficiency along

with compact size and wide range of color selections. All

components are produced by packing high-performance LED

chips and silicon resin with proprietary

1. Features and Benefits

. Ideal for LED lighting application to avoid multi-shadows

. Higher heat conductivity for better thermal management

. Provide variable and innovative array LED layout designs and combinations

. Reduce the initial development cost and time

. High lumen-performance per dollar cost

. Lead free reflow solder compatible with RoHS compliant

Dimensions and Materials

. Dimensions: 5.5 mm x 5 mm x 1.6 mm

. Packages: Top SMD

. Capsulated Resin: Silicone Resin with Silicate Phosphor

. Electrodes: Ag Plating

. Chips: Total 4 chips packed in cavity

Mechanical Dimensions

Notes:

1. All dimensions are in millimeters.

2. Tolerance is ±0.2mm unless otherwise noted

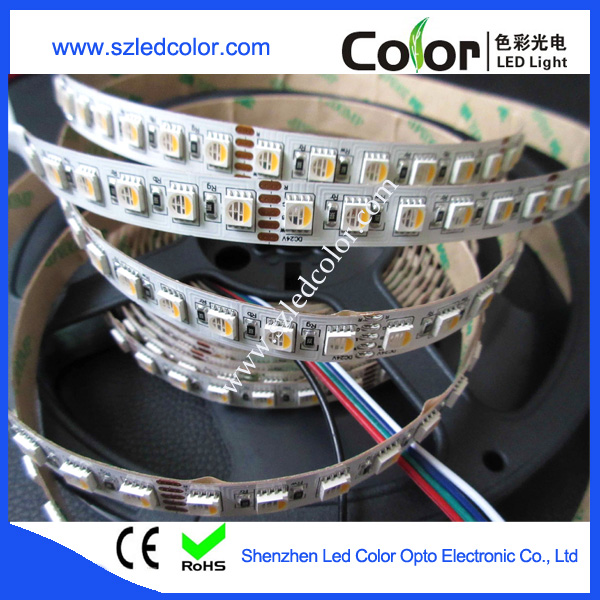

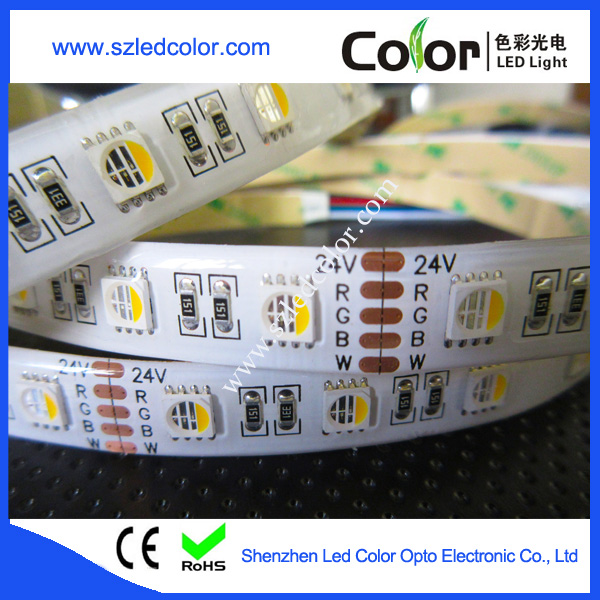

Also we have developed RGBW 4 in 1 strips,it can be 30/60/72/84/96/120(double row) leds per meter,black or white pcb,D12/24V.

the white color inside can be warm white:2800-3200K,nature white:4000-4500K,white:6000-6500K.
