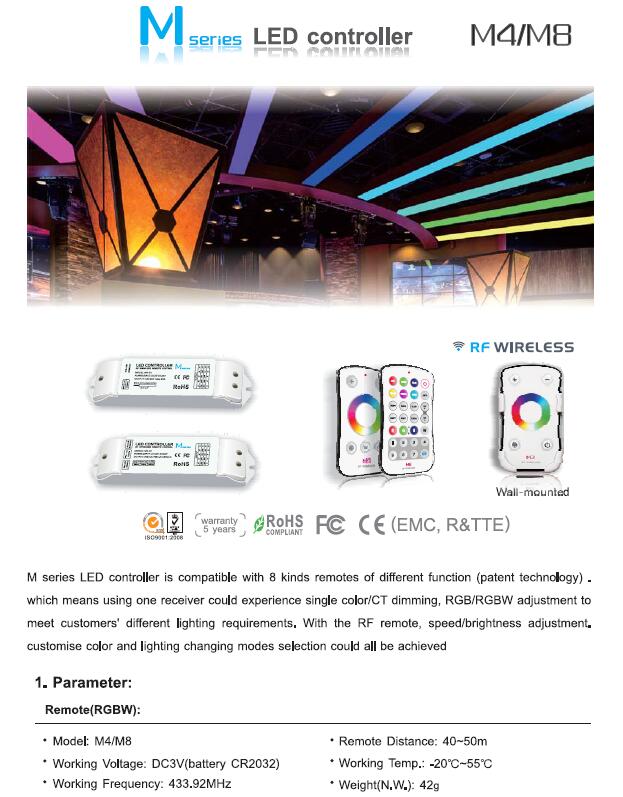

4ch rgbw touch panel remote controller for rgbw led strips
M1, M2, M3, M4, M6, M7, M8 Remote Control | |
| Working voltage | DC3V(Battery CR2032 ) |
| Working Frequency | 433.92 MHz |
| Remote Distance | 40-50m |
| Working Temp. | -30℃~55℃ |
| Dimensions | L104×W60×H9mm |
| Weight (N.W.) | 42g |
One receiver compatible 7 different functions remote controllers. Dimmer, color temperature,RGB, RGBW, select what you want. Such as, M3, M4, M6, M7 and M8 control the receiver connected with RGB lights meanwhile, and function is 5 times than general ones.
M4-5A CV Receiving controller | |
| Power input | DC5V-DC24V |
| Max Current load | 5A ×4CH Max 20A |
| Max Output power | 100W/240W/480W(5V/12V/24V) |
| Compatible remote | M1/M2/M3/M4//M5/M6/M7/M8 |
| Working Temp. | -30℃~55℃ |
| Dimensions | L175×W44×H30(mm) |
| Weight (N.W.) | 125g |
Picturers
|
