| SP002E mini LED controller |
SP002E Micro-Controller Operating Instructions |
1. Features:
1.Works stably, easy to use and connection is simple;
2.Can be customized to support almost every kind of one-wire or two-wire LED-DRIVER-IC;
3.With 76 kinds of patterns,which are vivid and beautiful;
4.Can control up to 2048 pixels;
5.Preventing reverse connection of power supply.
2.Functions Of Keys:
MODE+ | Switching patterns forwardly |
SPEED | Switching speed |
MODE- | Switching patterns backwardly |
MODE+ AND MODE- | Pressing MODE+ and MODE- at the same time and release at the same time into AUTO Mode |
3. Parameters:
Operating Voltage:5V or 12V;
Power Consumption: Less than 1W;
Supported IC by now:WS2801,WS2811,LPD6803,LPD8806,TM1809,UCS1903,UCS9812,APA102,APA104.Can be customized to
support other DRIVER-IC.
Cautions: Please make sure the power supply voltage is match to your controller before you power it.

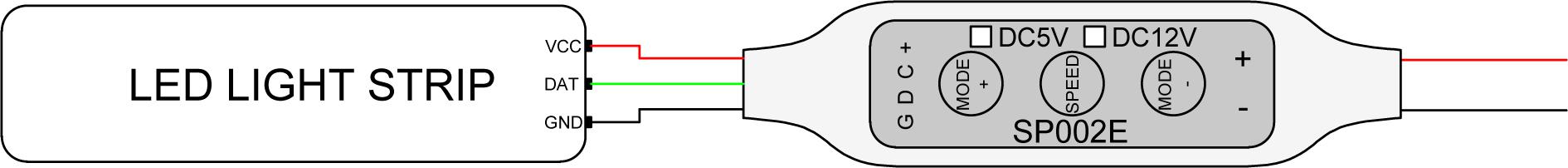

4. Wire Connections:
