APA102 Addressable LED Strip

Color:Full Color RGB

LED Quantity: 30/32/48/60/72/144leds per meter

Size: 5000*12*2.5(mm)

View angle:120°

Working Input Voltage: 5V

Drive Mode:Contant Voltage

APA102 LED is a new kind of digital rgb full color built-in IC SMD, which has one data cable with one indenpendent clock cable,this makes the signal travels very rapid and stable quality.Even to show the videos with a large data transmission on the LED,it also works smoothly and won`t get stuck.

• IC Type:APA102C Built-in IC
• LED Type:High Brightness 5050SMD LED,
• LED Qty :30/32/48/60/72/144 LED/m ,
• IC Qty: 30/32/48/60/72/144IC/m,
• 16.4 ft / 5m Reel
• 30/32/48/60/72/144Pixels per meter,
• Current:each chip is 20mA,60mA/LED,0.3W Max Power/led
• 1 Pixel Per 5050 High Quality RGB LED
• Viewing angle:120degree
• Gray Scale:256
• PCB:2.5Ounce thickness board,2Ounce copper wire inside,white or black PCB
• 4 cables:Black :GND,Blue :DATA,Yellow:Clock,Red :+5V.
•


  Dimension:

• 5000*12*2.5mm (non-waterproof),

• 5000*12*3.5mm (IP65 waterproof),

• 5000*14.5*4.5mm (IP67/68 waterproof),

• Waterproof IP grade:IP20 Non-waterproof with 3M sticker on the back,
• IP65 waterproof is silicone gel or epoxy on the surface,
• I67:silicone tube,
• IP68: silcone gel(or epoxy) inside silicone tube.

Features:

• Each led individual controlled,every led cutable.
• Operating Voltage 5 Voltage DC.
• SPI signal control system, DVI video control system,DMX console controllable.
• Madrix Software available (work with some special controllers).
• high intensity video screen,video wall,water running effect,breathing effect,color chasing,ect.

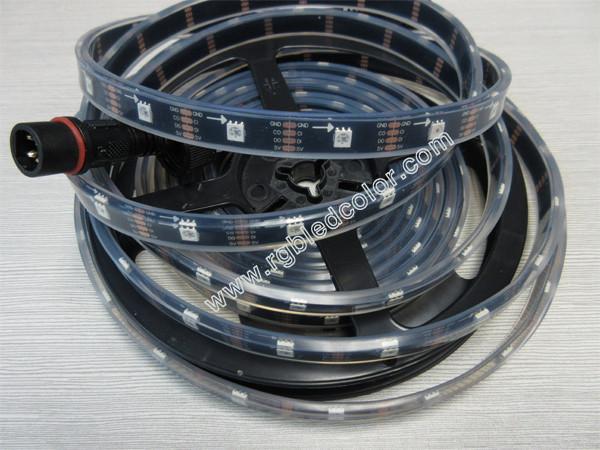

Show pictures:

All the pcb can be white board and black pcb.

High density 144led/m APA102 LED strip

IP68 waterproof with silicone gel inside silicone tube APA102
