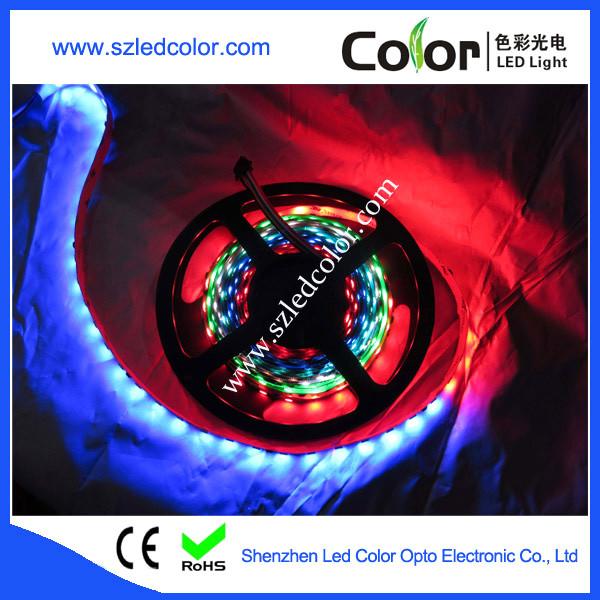

DMX SIGNAL DMX512 LED STRIP
DMX512IC
The newest DMX512IC has the max485 inside the DMX512 ic,which following the principle of dmx512 protocol,with fIve cables:+5V,PI address writing wire,A(DA+),B(DA-),GND .This makes dmx led strips can be series connection and parallel connection.Another advantage is that they can be cut everywhere you want,and also you can connect them together without adding any max485 modules on the side of the strips.The most important point maybe this kind of dmx512ic make the strips can be dmx controller control without a decoder,and of course you can use the decoder to save more channels and control more pixels.
With 5050 SMD high brightness led,you can achieve any perfect color effects.
DMX console control dmx signal led strip
32LED 32 DMX512IC INDIVIDUAL CONTROL DMX512 LED STRIP
We have developed three kinds of dmx512 led strip:32leds 32dmx512ics per meter individual control dmx led strip,each led can be different color.
10dmx512ics 30 leds dmx512 led strip,one ic control 3 leds led strip:
10dmx512ics 60 leds,one ic control six leds,10 pixels dmx512 led strip:
Connecting diagram of using dmx decoder to get more channels from dmx console to control dmx512 led strip
Use DMX decoder to save more channels and control more dmx pixels make the control ability as large as 4096 pixels much more than 512.so as to control more dmx led strip.(more information,contact me about it)
